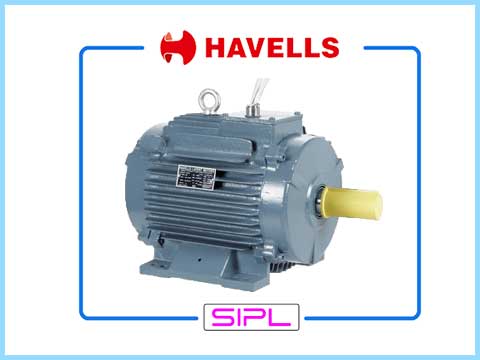

Havells Smoke Motors

Features / Specification
( IEC 60034-30-2008 & Dimension as per IS: 1231 & IS 2223 )

Voltage 415 V
Ambient temperature 50 Degree Celsius
RPM/Pole 3000 (2 pole)/1500 (4 pole)/1000 (6 pole)/750(8 pole)
Standard Smoke Motors
Terminal box location Top
KW/HP 0.37-22 KW/ (0.5-30 hp)
Body enclosure Cast Iron
Duty S4
Speciality Suitable for various Duty cycle operations & higher starts / stops per hour
Enclosure TEFC
Frame size 71 - 180
Frequency 50 Hz
IP degree of protection IP55
Insulation class F Class
Mounting B3 Foot Mounted/B5 Flange Mounted/B35 Foot cum Flange Mounted
Havells IE2 Motors

Also available in the following specialty

  • VPI / VFD Suitable
  • Thermisters
  • Insulated Bearing
  • Roller Bearing
  • Space Heater
  • Forced cooling
  • T.B Location: LHS/RHS
Warranty: Motors are covered by warranty under proper use, for faulty material or workmanship for 12 months from the date of commissioning or 18 months from the date of dispatch which ever is earlier.

Application:

The Crane Motors Are Duty Type Rated For Developing High Starting Torque With Low Starting Current. The Motors Are Designed To Withstand Stresses Due To Frequent Starts / Stops And Reversals. Also, A Rapid Acceleration Is Achieved By High Pull Out Torque / Rotor Inertia Ratio.
1. Crane Duty and Hoist Duty Applications Including LT & CT Drives.
2. Material Handling. | 3. Weirs and Sluices. | 4. Lift Duty. | 5. Auxiliary Motors in Rolling Mills. | 6. Material Handling Equipment. | 7. Conveyors | 8. Loader / Unloader |
9. Winch
