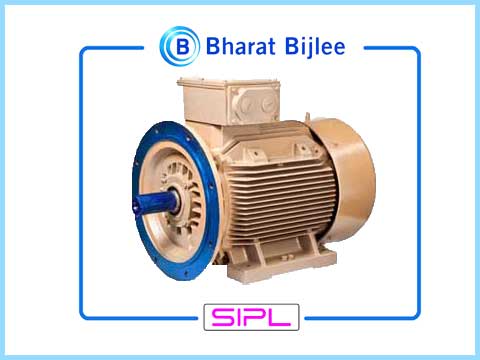

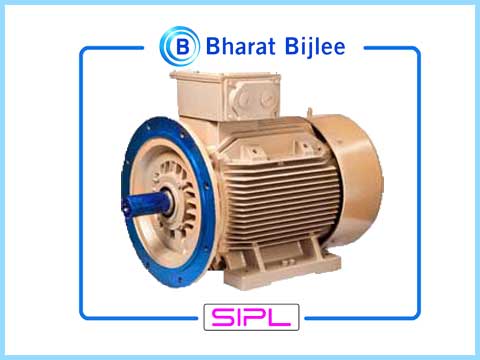

Bharat Bijlee Crane Duty SQ Cage Motors

Features / Specification
( AS PER IS:12615 / IEC:60034-1 )

KW / HP	0.37 To 200 KW / (0.5 To 270 HP)
RPM/Pole	1500 RPM (4 Pole) 1000 RPM (6 Pole) 750 RPM (8 Pole)
Frame Size	71 To 315
Mounting	B3 Foot Mounted B5 Flange Mounted B14 Face Mounted B35 Foot cum Flange Mounted
Duty	S3 / S4 / S5
CDF	25 / 40 / 60
Stats/ Hr	60 / 150 / 300
Ambient Temperature	45 °C
Body Enclosure	Cast Iron
Duty	S4
Enclosure	TEFC
Insulation class	F Class
IP degree of protection	IP55
Terminal Box Location	Top
Voltage	415 V +-10%
Frequency	50 Hz +-5%

DOWNLOAD PDF GET A QUOTE

Bharatbijlee Crane Duty Squirrel Cage Motors

Also available in the following specialty

VPI / VFD Suitable
IGT
T.B Location: RHS / LHS
Double Shaft Extension

Warranty: Motors are covered by warranty under proper use, for faulty material or workmanship for 12 months from the date of commissioning or 18 months from the date of dispatch whichever is earlier.

Description:

We Sourabh Innovative Pvt. Ltd. are the Stockist & Suppliers of Bharat Bijlee Crane Duty Squirrel Cage Motors having range from 0.37 KW to 200 KW & 0.5 HP to 270 HP. This motors are 3 phase with 415 volt & Frequency of 50 Hz. Bharat Bijlee Crane Duty Squirrel Cage motors are available in 1500 RPM, 1000 RPM and 750 with respect to 4 Pole, 6 Pole and 8 Pole with cast iron body. This motors are compatible with S3, S4 & S5 duty with CDF 25 / 40 / 60& 60 / 150 / 300 Starts per hour. Available Frame sizes are from 71 to 315 frame. Mounting options are B3 (Foot Mounting) B5 (Flange Mounting), B35 (Foot cum Flange Mounting), B14 (Face Mounting) available with Terminal Box Position at TOP Side.Bharat Bijlee Crane Duty Squirrel Cage motors are available in insulation class F & temperature rise limited to Class B with IP 55 degree of protection. Ambient temperature of Bharat Bijlee IE2 motors are 20 °C to +45° C. This motors are also available with specialties i.e. VPI / VFD Suitable, IGT, Double Shaft Extension, T.B Location: LHS / TOP.

Application:

The Crane Motors Are Duty Type Rated For Developing High Starting Torque With Low Starting Current. The Motors Are Designed To Withstand Stresses Due To Frequent Starts / Stops And Reversals. Also, A Rapid Acceleration Is Achieved By High Pull Out Torque / Rotor Inertia Ratio.
1. Crane Duty and Hoist Duty Applications Including LT & CT Drives.
2. Material Handling. | 3. Weirs and Sluices. | 4. Lift Duty. | 5. Auxiliary Motors in Rolling Mills. | 6. Material Handling Equipment. | 7. Conveyors | 8. Loader / Unloader |
9. Winch
