Features / Specification
( AS PER IS:12615 / IEC:60034-1 )
| KW HP | 1.1 To 10 KW / (1.5 To 13.4 HP) |
|---|---|
| RPM / Pole | 1000 RPM (6 Pole) |
| Frame Size | 100 To 160L |
| Mounting | B3 Foot Mounted B5 Flange Mounted B35 Foot cum Flange Mounted |
| Duty | S3 / S4 / S5 |
| CDF | 25 / 40 / 60 |
| Stats / Hr | 60 / 150 / 300 |
| Ambient Temperature | 45 °C |
| Body Enclosure | Cast Iron |
| Enclosure | TEFC |
| Insulation class | F Class |
| Phase | 3 Phase Motor |
| IP degree of protection | IP55 |
| Terminal Box Location | Top |
| Voltage | 415 V +-10% |
| Frequency | 50 Hz +-5% |
Also available in the following specialty
- Double Shaft Extension
Description:

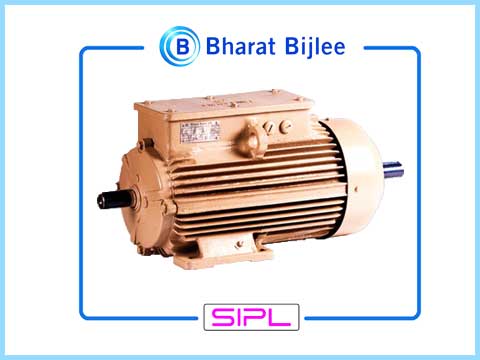

We Sourabh Innovative Pvt. Ltd. are the Stockist & Suppliers of Bharat Bijlee Crane Duty Slipring Motors having range from 1.1 KW to 10 KW & 1.5 HP to 13.5 HP. This motors are 3 phase with 415 volt & Frequency of 50 Hz. Bharat Bijlee Crane Duty Slipring Motors are available in 1000 RPM (6 Pole) only with cast iron body. This motors are compatible with S3, S4 & S5 duty with CDF 25 / 40 / 60& 60 / 150 / 300 Starts per hour. Available Frame sizes are from 100 to 160 frame. Mounting options are B3 (Foot Mounting) B5 (Flange Mounting), B35 (Foot cum Flange Mounting) available with Terminal Box Position at TOP Side. Bharat Bijlee Crane Duty Slipring motors are available in insulation class F & temperature rise limited to Class B with IP 55 degree of protection. Ambient temperature of Bharat Bijlee Crane Duty Slipring Motors are 20 °C to +45° C. This motors are also available with specialty of Double Shaft Extension.
Application:
Cranes & Hoists, Other Material Handling Equipment's, Weirs & Sluices, All types of Lifts, Rolling Mills.
